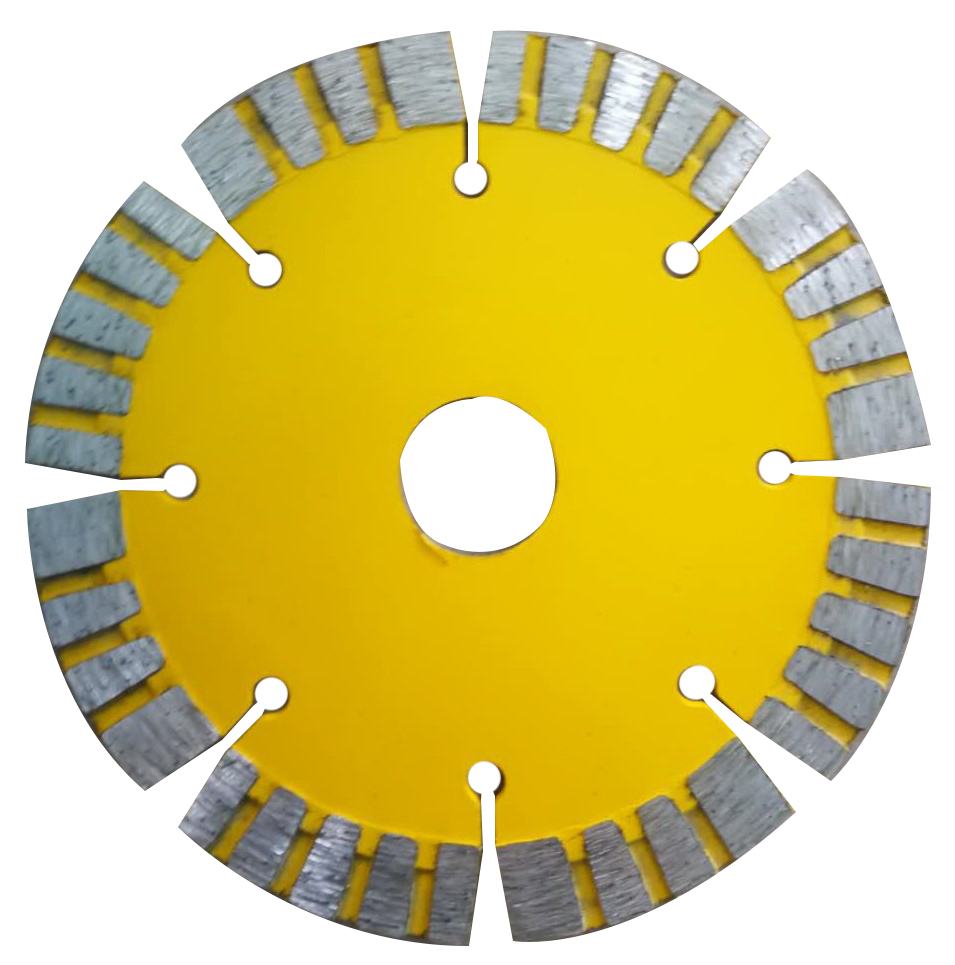

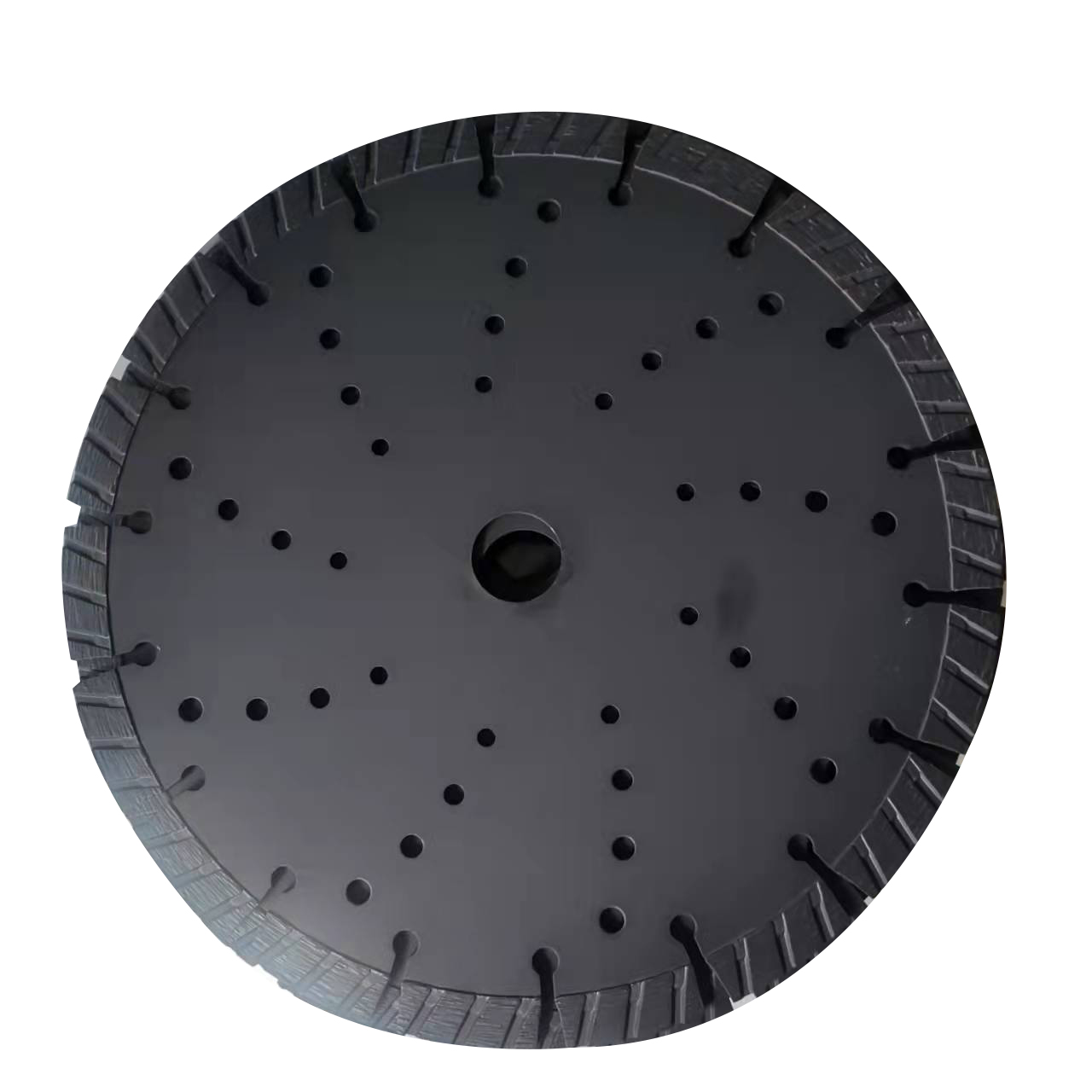

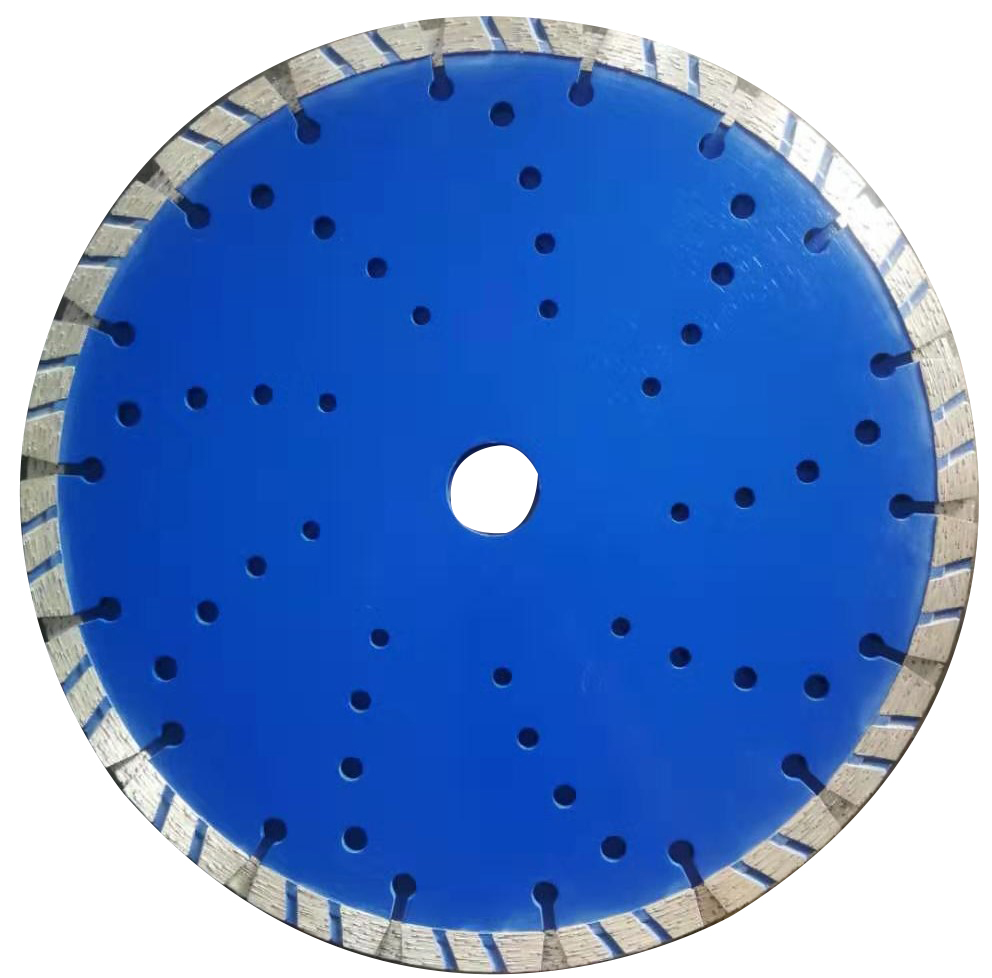

Boyuantools special designed universal stone saw blade .
Cold pressed Dry-Turbo rim
Special Designed for all granite ,marble ,stone ...cutting
Good quality,have good cutting performance in speed ,lifespan .
The size we can do from 75mm to 350mm
Below size for you reference first ,the real size we can do it as per your special demand .
|
Products code |
Diamater |
Arbor | Size of segment | ||
| (mm) | Thick (mm) | Width(mm) | |||
| BYCSTO04-DT | 4" | 105mm | 20 | 2.0 | 7/15 |
| BYCSTO4.3-DT | 4.3" | 110mm | 20 | 2.0 | 7/15 |
| BYCSTO4.5-DT | 4.5" | 115mm | 22.23 | 2.0 | 7/15 |
| BYCSTO05-DT | 5" | 125mm | 22.23 | 2.0 | 7/15 |
| BYCSTO06-DT | 6" | 150mm | 22.23 | 2.2 | 7/15 |
| BYCSTO07-DT | 7" | 180mm | 22.23 | 2.4 | 7/15 |
| BYCSTO08-DT | 8" | 200mm | 22.23 | 2.4 | 7/15 |
| BYCSTO09-DT | 9" | 230mm | 22.23 | 2.6 | 7/15 |
| BYCSTO10-DT | 10" | 250mm | 25.4 | 2.8 | 10/15 |
| BYCSTO12-DT | 12" | 300mm | 20/50 | 3.0 | 10/15 |
| BYCSTO14-DT | 14" | 350mm | 20/50 | 3.5 | 10/15 |
| BYCSTO16-DT | 16" | 400mm | 20/50 | 3.6 | 10/15 |
| ▲Different arbor sizes and segment specification are available up on detail request | |||||
