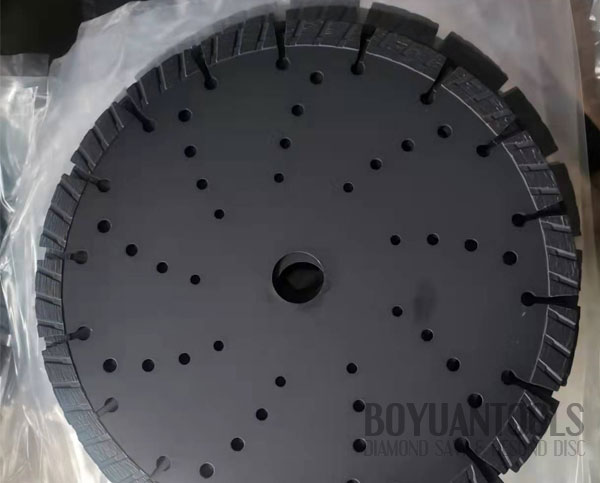

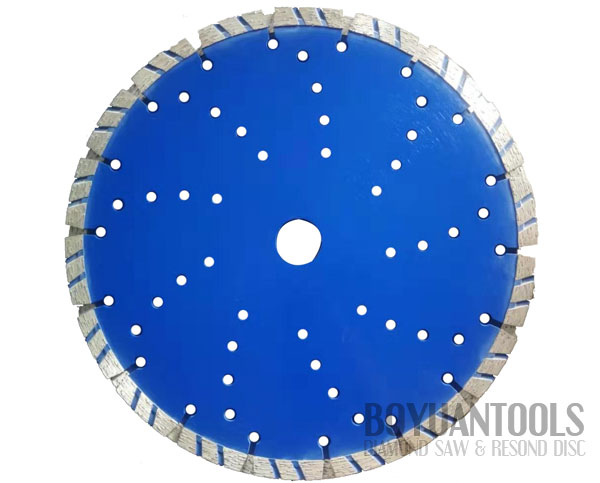

Boyuantools special designed concrete ,asphlt saw blade .
Cold pressed Dry-Turbo rim
Special Designed for any hard concrete ,granite ,bricks ,asphlt ...cutting
Good quality,have good cutting performance in speed ,lifespan .
The size we can do from 75mm to 350mm
Below size for you reference first ,the real size we can do it as per your special demand .
|
Products code |
Diamater |
Arbor | Size of segment | ||
| (mm) | Thick (mm) | Width(mm) | |||
| BYCCON04-T | 4" | 105mm | 20 | 2.0 | 7/15 |
| BYCCON4.3-T | 4.3" | 110mm | 20 | 2.0 | 7/15 |
| BYCCON4.5-T | 4.5" | 115mm | 22.23 | 2.0 | 7/15 |
| BYCCON05-T | 5" | 125mm | 22.23 | 2.0 | 7/15 |
| BYCCON06-T | 6" | 150mm | 22.23 | 2.2 | 7/15 |
| BYCCON07-T | 7" | 180mm | 22.23 | 2.4 | 7/15 |
| BYCCON08-T | 8" | 200mm | 22.23 | 2.4 | 7/15 |
| BYCCON09-T | 9" | 230mm | 22.23 | 2.6 | 7/15 |
| BYCCON10-T | 10" | 250mm | 25.4 | 2.8 | 10/15 |
| BYCCON12-T | 12" | 300mm | 20/50 | 3.0 | 10/15 |
| BYCCON14-T | 14" | 350mm | 20/50 | 3.5 | 10/15 |
| BYCCON16-T | 16" | 400mm | 20/50 | 3.6 | 10/15 |
| ▲Different arbor sizes and segment specification are available up on detail request | |||||
