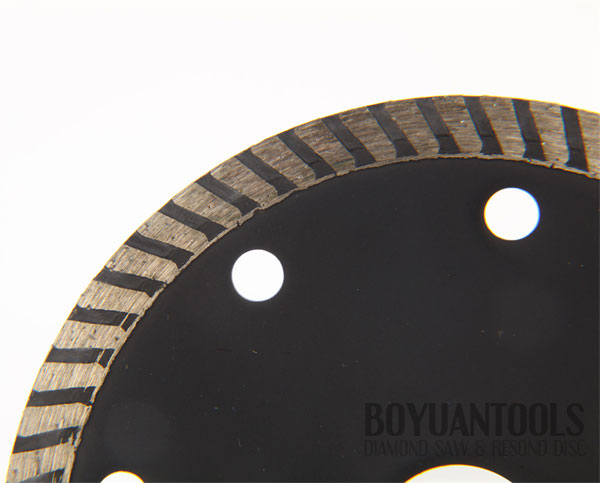

Good quality for all procelain ,ceramic tiles,glass...cutting
Reliable cutting performance : for fine stoneware, ceramic tiles and procelain are all available.Fast cutting speed ,smooth cutting edges
Its price is much competitive to meet general market demand .
The size we can do from 100mm to 400mm
Below size for reference first ,the real size we can do it as per customer's special demand .
|
Products code |
Diamater |
Arbor | Size of segment | |||
| (mm) | Thick (mm) | Width(mm) | Height(mm) | |||
| BYCTILE04-T | 4" | 105mm | 20 | 1.1 | 7/10 | |
| BYCTILE4.3-T | 4.3" | 110mm | 20 | 1.2 | 7/10 | |
| BYCTILE4.5-T | 4.5" | 115mm | 22.23 | 1.4 | 7/10 | |
| BYCTILE05-T | 5" | 125mm | 22.23 | 1.5 | 7/10 | |
| BYCTILE06-T | 6" | 150mm | 22.23 | 1.6 | 7/10 | |
| BYCTILE07-T | 7" | 180mm | 22.23 | 1.8 | 7/10 | |
| BYCTILE08-T | 8" | 200mm | 22.23 | 2.0 | 7/10 | |
| BYCTILE09-T | 9" | 230mm | 22.23 | 2.2 | 7/10 | |
| BYCTILE10-T | 10" | 250mm | 25.4 | 2.4 | 7/10 | |
| BYCTILE12-T | 12" | 300mm | 20/50 | 2.5 | 7/10 | |
| BYCTILE14-T | 14" | 350mm | 20/50 | 3.0 | 7/10 | |
| ▲Different arbor sizes and segment specification are available up on detail request | ||||||
