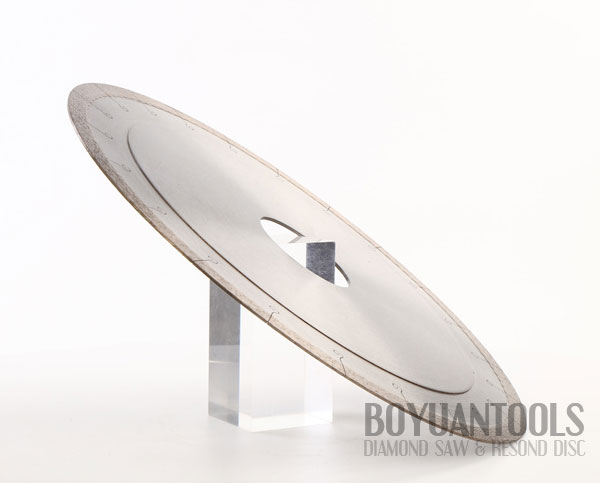

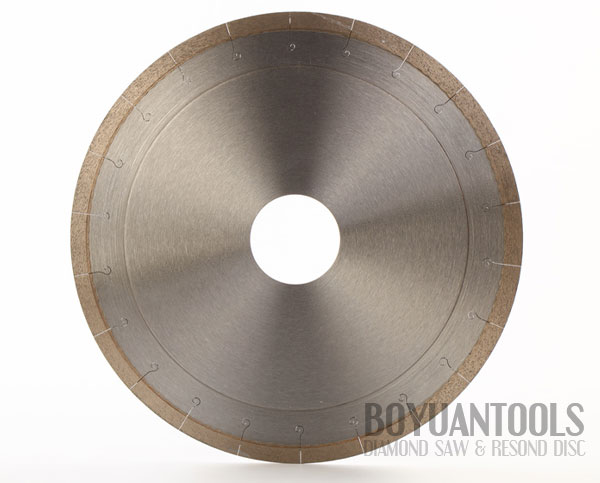

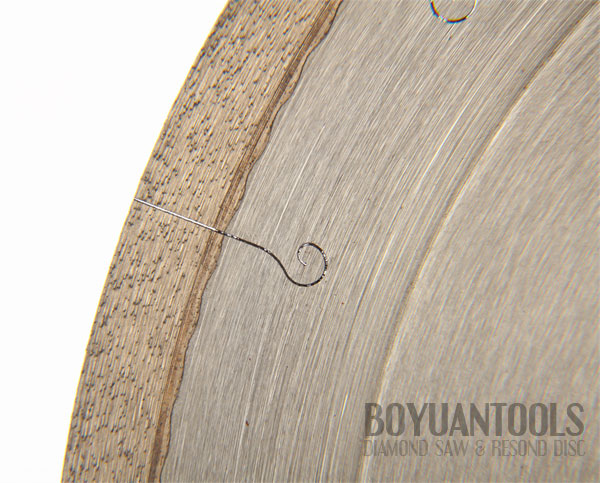

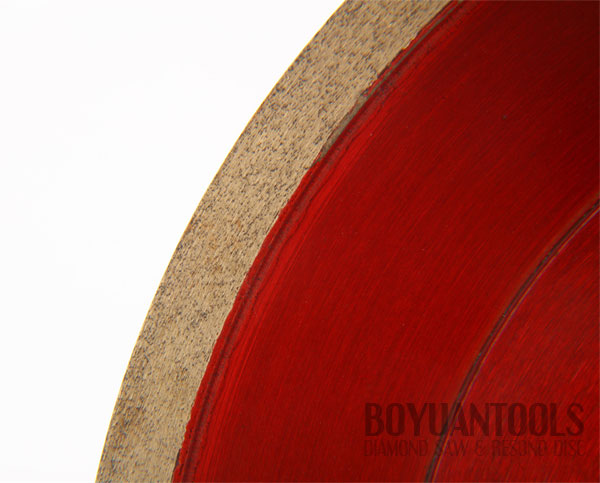

Special Designed for any hard procelain ,ceramic tiles,glass...cutting
hot pressed ， Professional-high level quality to any professional market .
Excellent cutting performance : for fine stoneware, ceramic tiles and procelain are all available.The super thin saw blade, fast cutting speed with long lifespan ,enable clean cutting edges, a better surface finish and reduced edge bridging.
The size we can do from 75mm to 400mm
Below size for you reference list,the real size we can do it as per your special demand .
|
Products code |
Diamater |
Arbor | Size of segment | |||
| (mm) | Thick (mm) | Width(mm) | Height(mm) | |||
| BYHTILE04-C | 4" | 105mm | 20 | 1.0 | 5/10 | |
| BYHTILE4.3-C | 4.3" | 110mm | 20 | 1.2 | 5/10 | |
| BYHTILE4.5-C | 4.5" | 115mm | 22.23 | 1.4 | 5/10 | |
| BYHTILE05-C | 5" | 125mm | 22.23 | 1.5 | 5/10 | |
| BYHTILE06-C | 6" | 150mm | 22.23 | 1.6 | 5/10 | |
| BYHTILE07-C | 7" | 180mm | 22.23 | 1.8 | 5/10 | |
| BYHTILE08-C | 8" | 200mm | 22.23 | 2.0 | 5/10 | |
| BYHTILE09-C | 9" | 230mm | 22.23 | 2.2 | 5/10 | |
| BYHTILE10-C | 10" | 250mm | 25.4 | 2.4 | 10 | |
| BYHTILE12-C | 12" | 300mm | 20/50 | 1.2,16,1.8,2.0,2.2,2.4 | 10 | |
| BYHTILE14-C | 14" | 350mm | 20/50 | 3.0 | 10 | |
| BYHTILE16-C | 16" | 400mm | 20/50 | 3.4 | 10 | |
| ▲Different arbor sizes and segment specification are available up on detail request | ||||||
